7 Photos from Inside Boeing’s South Carolina Facility

Boeing is showing off their North Charleston, S.C. facility ahead of the first 787-10 Dreamliner delivery to Singapore Airlines on Sunday night. While the factory’s size pales in comparison to its Everett counterpart, it is a powerhouse for 787 production, turning out roughly five aircraft each month.

AirlineGeeks took an in-depth look inside Boeing’s South Carolina plant back in February 2017. The campus itself boasts an aft-body, mid-body, and final assembly areas in addition to a decorative paint facility and delivery center.

Boeing South Carolina is full service, too, meaning that it is able to take aircraft from ‘freezer to flight.’  The 787 is the first aircraft made primarily of composite materials.

Starting with the aft-body section, the Boeing South Carolina team fabricates the piece that will become the rear of the passenger cabin with carbon fiber before moving it to final assembly or loading it onto a 747 Dreamlifter to Everett.

Boeing’s aft-body section facility in North Charleston, S.C. (Photo: AirlineGeeks | Ryan Ewing)

If the carbon fiber used in a single 787 was spread out into a straight line, it would measure 2,200 miles, roughly the distance between Charleston, S.C. and Los Angeles.

Nearly complete aft-body sections for the 787 Dreamliner (Photo: AirlineGeeks | Ryan Ewing)

Since the Dreamliner is the first commercial aircraft with a fuselage comprising of one-piece composite sections, it requires 1.2 million fewer fasteners than non-composite jets.

After moving across the North Charleston campus, the 787 sections are placed into position zero, which means they have yet to be fully joined together. This also includes the mid-body section of the aircraft. Unfortunately, no photos were permitted in the mid-body facility.

The raked wingtip of a Boeing 787 Dreamliner (Photo: AirlineGeeks | Ryan Ewing)

The final assembly building is where the aircraft gets its wings.

A 787’s wing in the North Charleston facility (Photo: AirlineGeeks | Ryan Ewing)

Boeing South Carolina’s final assembly building spans approximately 1,040 feet in length and 617 feet in width. On a Sunday morning, the building itself was quiet with most workers being off-duty.

A Scoot 787-9 in the North Charleston final assembly building (Photo: AirlineGeeks | Ryan Ewing)

The final assembly building in North Charleston is normally dominated by a plethora of tails from around the world, though tails of Asian carriers dominated the landscape. Included in the mix were Singapore 787-10s, Scoot 787-9 aircraft, and a Japan Air Lines 787-9.

A diverse selection of Asian carrier tails at Boeing South Carolina (Photo: AirlineGeeks | Ryan Ewing)

Notably, Singapore 787-10 aircraft populated the factory floor along with the two already sitting on the nearby flightline.

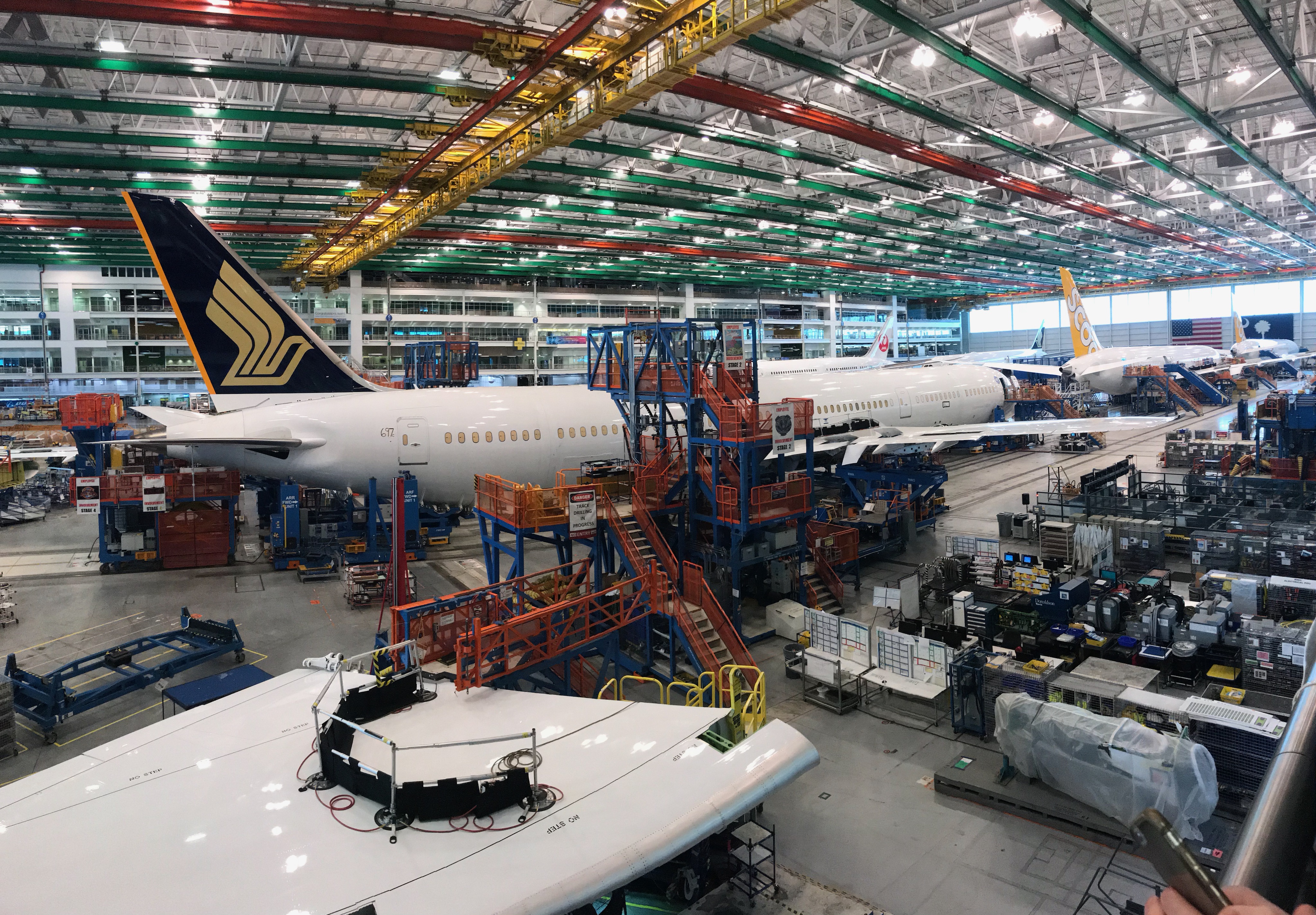

A Singapore 787-10 undergoing final assembly at Boeing South Carolina (Photo: AirlineGeeks | Ryan Ewing)

When Singapore Airlines takes delivery of its first Boeing 787-10 Dreamliner in North Charleston on Sunday evening, the airline, along with its Scoot subsidiary, will be the first to operate all three 787 variants.
